| Ventilation ceiling trapeze

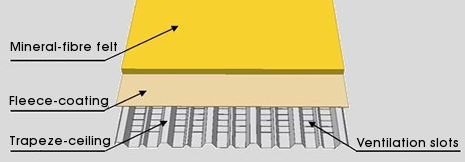

The ceilings trapeze, made from glass fibre reinforced plastics (GRP), evenly distribute the incoming fresh air in the housing. The upper side is insulated with a hydrophobised, fleece-coated mineral-fibre felt.
These ventilation ceilings are predominantly used in large housings and sections, as it is aerodynamically unfavourable there to lead the incoming air through long air channels. Instead, the ceiling trapeze distributes the air on the whole housing area at a low resistance rate.
We recommend an insulation of 80 mm to meet a sufficient insulance and an optimal airflow. Due to the insulation and the slotted trapeze-ceiling, the fresh air can stream-in evenly.
Compatibly to the ventilation ceiling trapeze, we offer a corrugation filler which seals the trapeze-ceilings in-between the sections. The corrugation filler guarantees a correct air flow even with temperature differences between the sections.
For further information, please see the technical information which you can find in the menu bar on the left side – or contact us! |
